Standard 13mm

Technical Specifications Installation Instructions

This board sets the Standard for commercial applications. Gyprock Standard 13mm works as a general internal wall and ceiling lining in a huge range of commercial applications.

Product Overview

Gyprock Standard 13mm is manufactured in Australia to meet and exceed the requirements of Australian Standard AS/NZS 2588.

The go-to for commercial construction, Gyprock Standard 13mm can also be used residential to deliver a more robust, acoustically sound lining.

Typical Applications

Gyprock Standard 13mm is typically used as a wall and ceiling lining option in commercial applications including non-fire or acoustic rated walls and partitions.

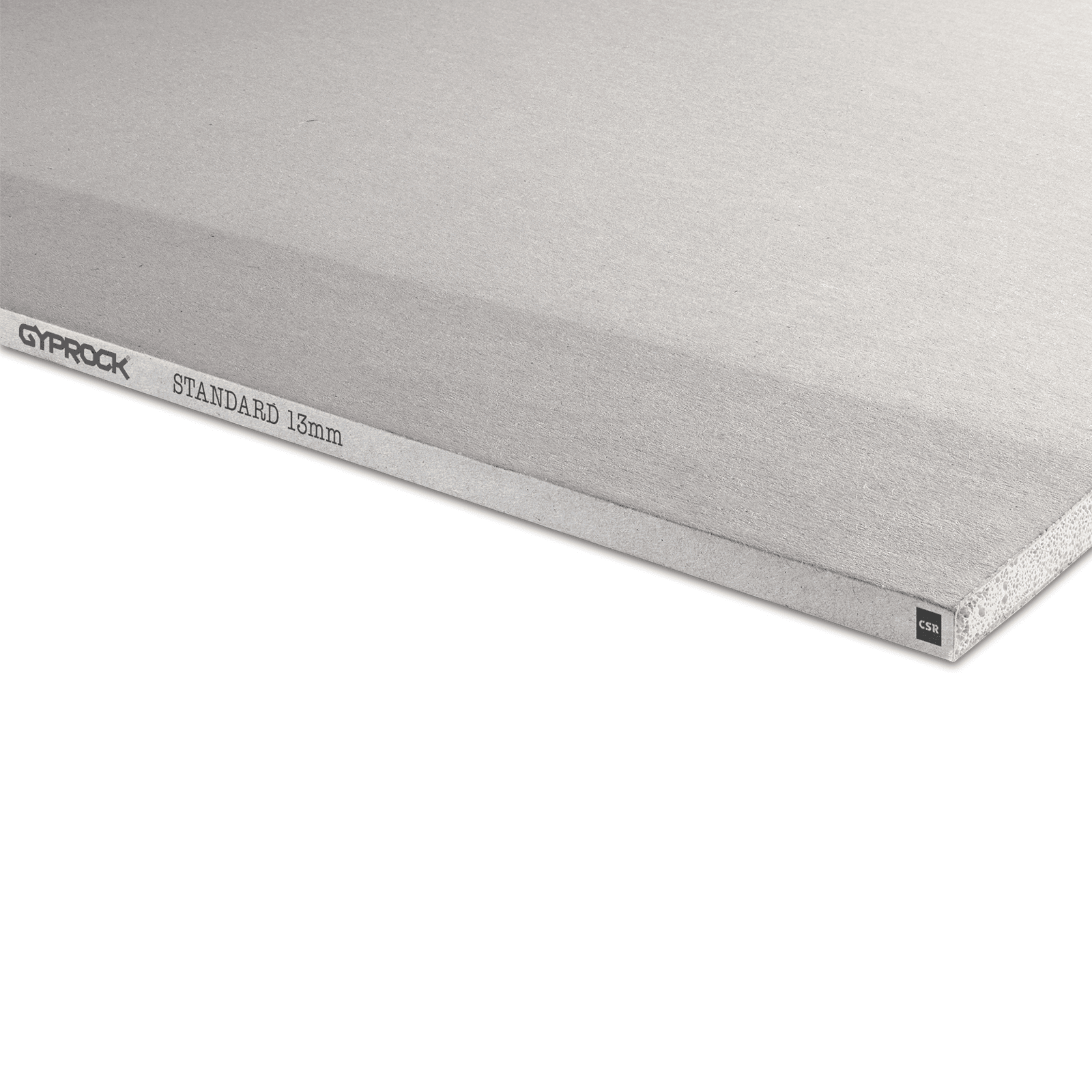

Gyprock® Standard 13mm
Product Data Sheet Safety Data Sheet Find a Supplier
Australian Made logo in black and white

Australian Made

Licensed by Australian Made Campaign Ltd
versatile icon with line shape

Versatile

Suitable for walls and ceilings

improved score icon with cutting blade

Excellent Score and Snap

Easier to use

25 year warranty icon

25 Year Warranty

Specify and install with confidence

Technical Specifications

Product Options

Gyprock Standard 13mm is available in the following sizes:

Thickness 13mm
Widths 900mm
1200mm
1350mm
1400mm
Lengths 2400mm
2700mm
3000mm
3600mm
4200mm
4800mm
6000mm
Edge Profiles Recessed Edge for regular jointing
Recessed Edge/Square Edge for low profile architectural mouldings
Square Edge for applications not requiring jointing

Stockholdings of specific sizes may vary in different regions. Click HERE for a list of stocked sizes in your state

For the latest product availability in your area and to place an order, contact your nearest supplier.

Product Manufacture

Gyprock Standard 13mm is manufactured by CSR Gyprock in Australia to stringent product specifications.

Product Handling

Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.

Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.

Health and Safety

Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.




Manufacturing Tolerances

Nominal Thickness 13mm ± 0.5mm
Nominal Widths 900mm, 1200mm, 1350mm, and 1400mm ± 3mm
Nominal Lengths From 2400 to 6000mm ± 5mm, typically in 300mm increments
Squareness Cut ends ± 3mm in the width of the board.

Physical Properties

Nominal Board Weight* 8.5kg/m2
Thermal Resistance 0.05 - 0.07 m2K/W
Fire Hazard Properties∆ Group No = 1
SMOGRARC <100 m2/s2
Combustibility◊ Plasterboard may be used wherever a non-combustible material is required.
Total Recycled Content
 3.7%

* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).

Installation Instructions

Installation Guidance

Install to manufacturer's recommendations as outlined in the relevant Installation Guide.

Resources

Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.

Commercial Installation Guide

Design considerations and installation instructions.

Australian Made

Australian Made

Licensed by Australian Made Campaign Limited to use the Australian Made Logo.
Manufactured For Life red logo with the shape of Australia in the centre.

Manufactured for Life

Gyprock plasterboard products are manufactured for life with all CSR products designed to achieve optimal performance when part of a CSR integrated system.

GECA Accredited

Verified by an independent conformity assessment body to meet the environmental, health and social/ethical criteria of the GECA Panel Boards standard.

Australian Standard

Exceeds the requirements of Australian Standard AS/NZS 2588 - Gypsum Plasterboard, accredited through SAI Global.
