EC08™ Complete

Technical Specifications Installation Instructions

Complete by name and Complete by nature: for commercial environments, this ultimate plasterboard is specifically engineered to meet the highest standards across a broad range of performance requirements.

Product Overview

EC08 Complete is manufactured with a dense, fibre-reinforced core and is specially formulated to provide superior performance for mould, impact, fire, acoustic and moisture resistance making it an excellent choice for most commercial applications.

All boards in the EC08 range contain high levels of recycled content and are manufactured to AS/NZS 2588 – Gypsum Plasterboard. Their low VOC emissions make them an ideal choice for applications where maintaining high levels of indoor air quality is important.

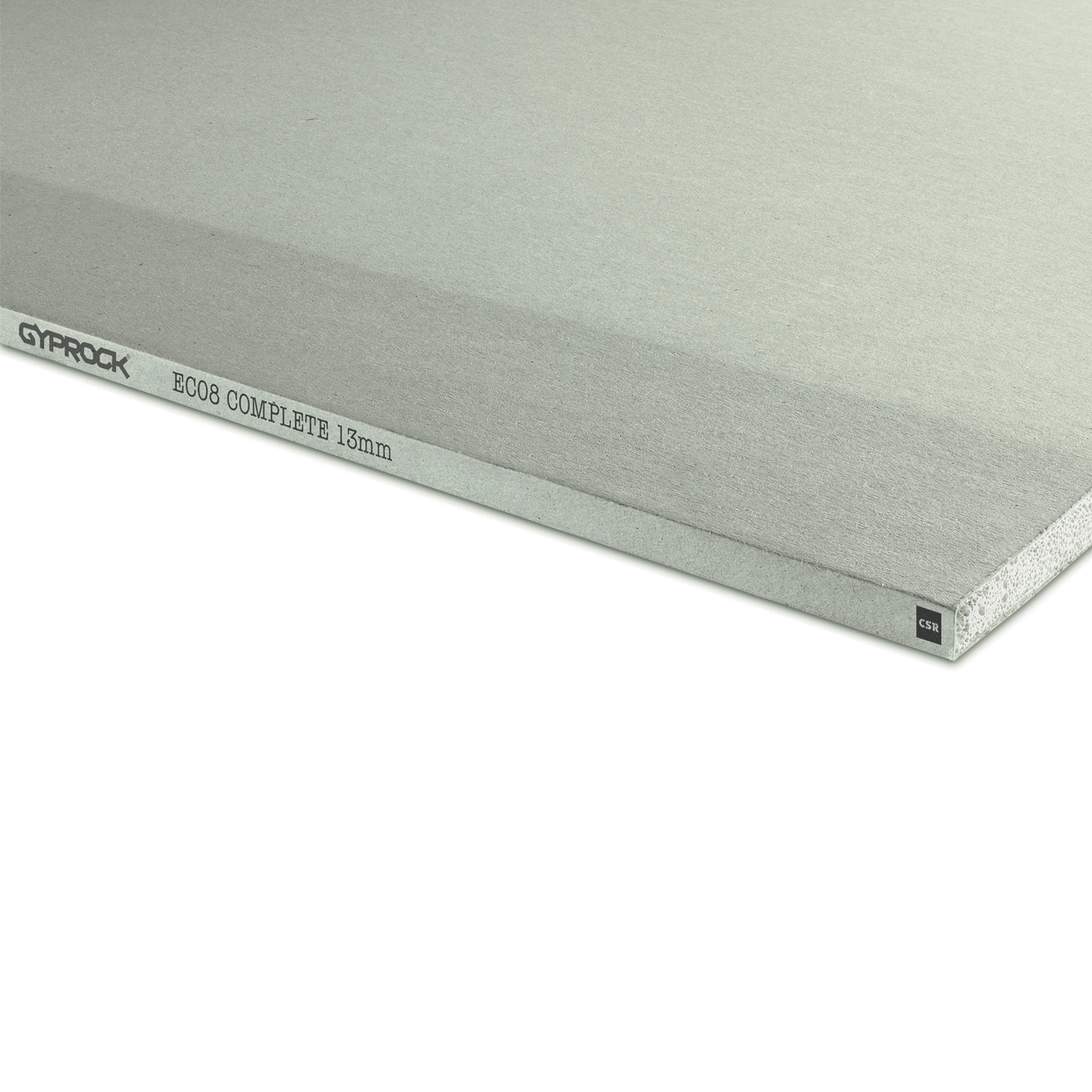

EC08 Complete is easily identified by its green coloured face paper.

Typical Applications:

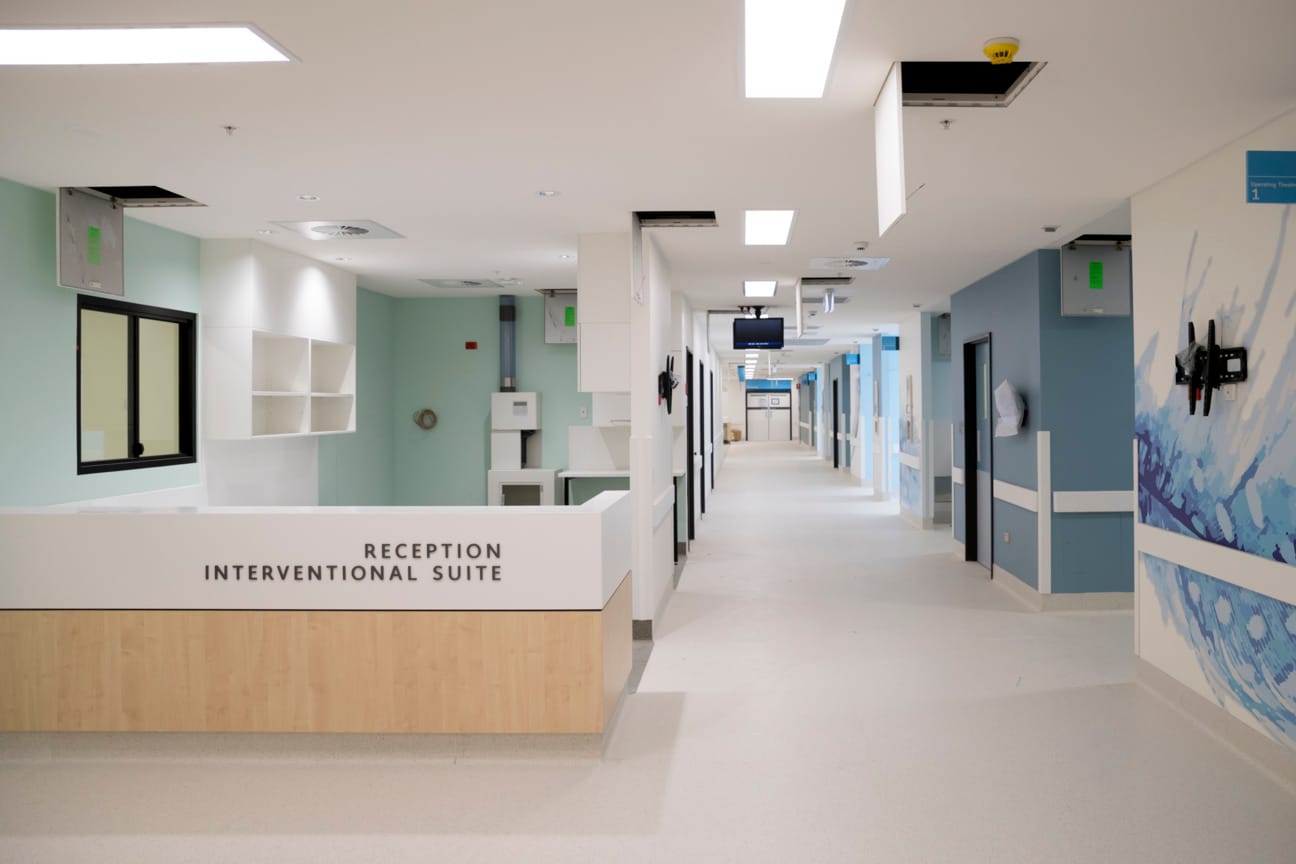

EC08 Complete is typically used as a wall and ceiling lining in commercial green building projects where a high level of impact, fire, moisture and mould resistance is required and high levels of recycled content are desired. This includes all green building projects and applications where maintaining high levels of indoor air quality is important such as schools, health and aged care.
Gyprock EC08™ Complete
Product Data Sheet Safety Data Sheet Find a Supplier
Australian Made logo in black and white

Australian Made

Licensed by Australian Made Campaign Ltd
Superior Mould Protection icon with cross

Powerful Antifungal Agent

Resists mould and mildew

impact resistant icon with shield and tick

Impact Resistant

Reduces damage from soft and hard body impact

wet area icon with droplet

Moisture Resistant

Suitable for wet areas

high recycled content icon with recycle symbol

High Recycled Content

Ideal for green building projects

acoustic performance icon with sound

Acoustic Properties

Helps combat sound transmission

fire rated icon with flame

Fire-rated

Can be used as part of a fire-rated system

Tested Impact Performance

Gyprock impact resistant plasterboard products are manufactured with a heavier lining paper, and special additives to enhance the durability of their core. Typically, these products can withstand twice the discernible force of regular plasterboard products, making them ideal for high traffic areas.

Hard body impact

Hard body impact is assessed by dropping a 50mm steel ball onto the plasterboard surface from increasing heights.

Soft body impact

Soft body impact testing sees a weighted bag swung on a pendulum, striking the plasterboard surface.

Impact Resistance

Technical Specifications

Product Options

Gyprock EC08 Complete is available in the following sizes.

Thickness 13mm
16mm
Widths 1200mm
Lengths 3000mm
3600mm
Edge Profiles Recessed Edge for regular jointing

Stockholdings of specific sizes may vary in different regions. Click HERE for a list of stocked sizes in your state.

For the latest product availability in your area and to place an order, contact your nearest supplier.

Product Manufacture

Gyprock EC08 Complete is manufactured by CSR Gyprock in Australia to stringent product specifications.

Product Handling

Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.

Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.

Health and Safety

Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.

Manufacturing Tolerances

Nominal Thickness 13mm and 16mm ± 0.5mm
Nominal Widths 1200mm ± 3mm
Nominal Lengths 3000mm and 3600mm ± 5mm
Squareness Cut ends ± 3mm in the width of the board

Physical Properties

13mm 16mm
Nominal Board Weight* 12.4kg/m2 14.8kg/m2
Thermal Resistance 0.05 - 0.07 m2K/W 0.07 – 0.09 m2K/W
VOC level (as per GBCA limits) 0.043 mg/m2 /hr
Fire Hazard Properties∆ Group No = 1
SMOGRARC <100 m2/s2
Combustibility◊ Plasterboard may be used wherever a non-combustible material is required.
Total Recycled Content
 21.3% 21.2%

* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).

Installation Instructions

Resources

Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.

Commercial Installation Guide

Design considerations and installation instructions.

Australian Made

Australian Made

Licensed by Australian Made Campaign Limited to use the Australian Made Logo.
Manufactured For Life red logo with the shape of Australia in the centre.

Manufactured for Life

Gyprock plasterboard products are manufactured for life with all CSR products designed to achieve optimal performance when part of a CSR integrated system.

GECA Accredited

Verified by an independent conformity assessment body to meet the environmental, health and social/ethical criteria of the GECA Panel Boards standard.
