Flexible

Technical Specifications Installation Instructions

Designed to impress, Gyprock Flexible 6.5mm plasterboard enables specifiers, designers and installers to easily create curved walls and ceilings and add visual interest to a space.

Product Overview

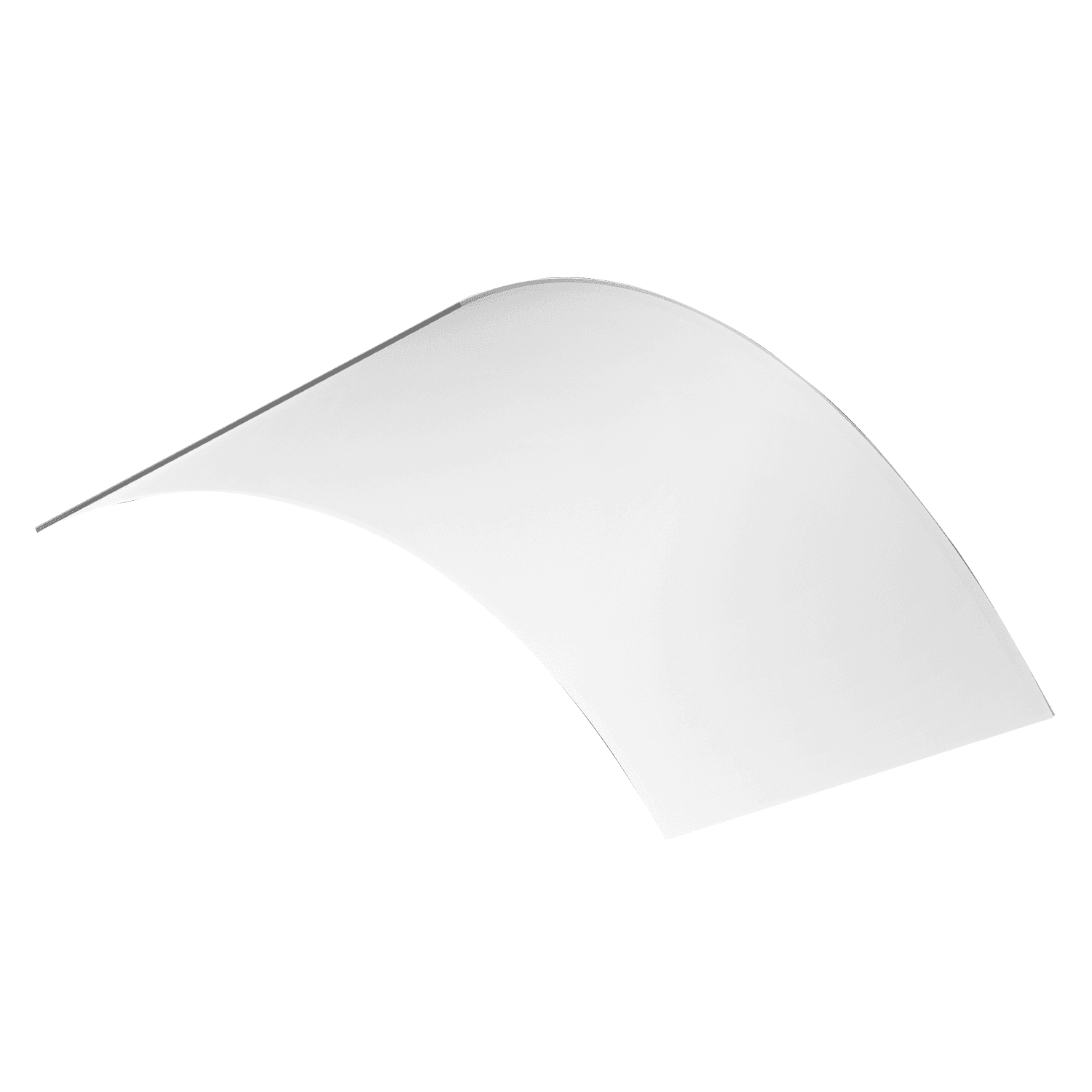

Gyprock Flexible is a 6.5mm thick plasterboard sheet with an enhanced gypsum core, designed to bend for small radius curves.

From concept to creation, designers and installers can create convex curves with a 250mm radius and concave curves with a 450mm radius.

Typical Applications

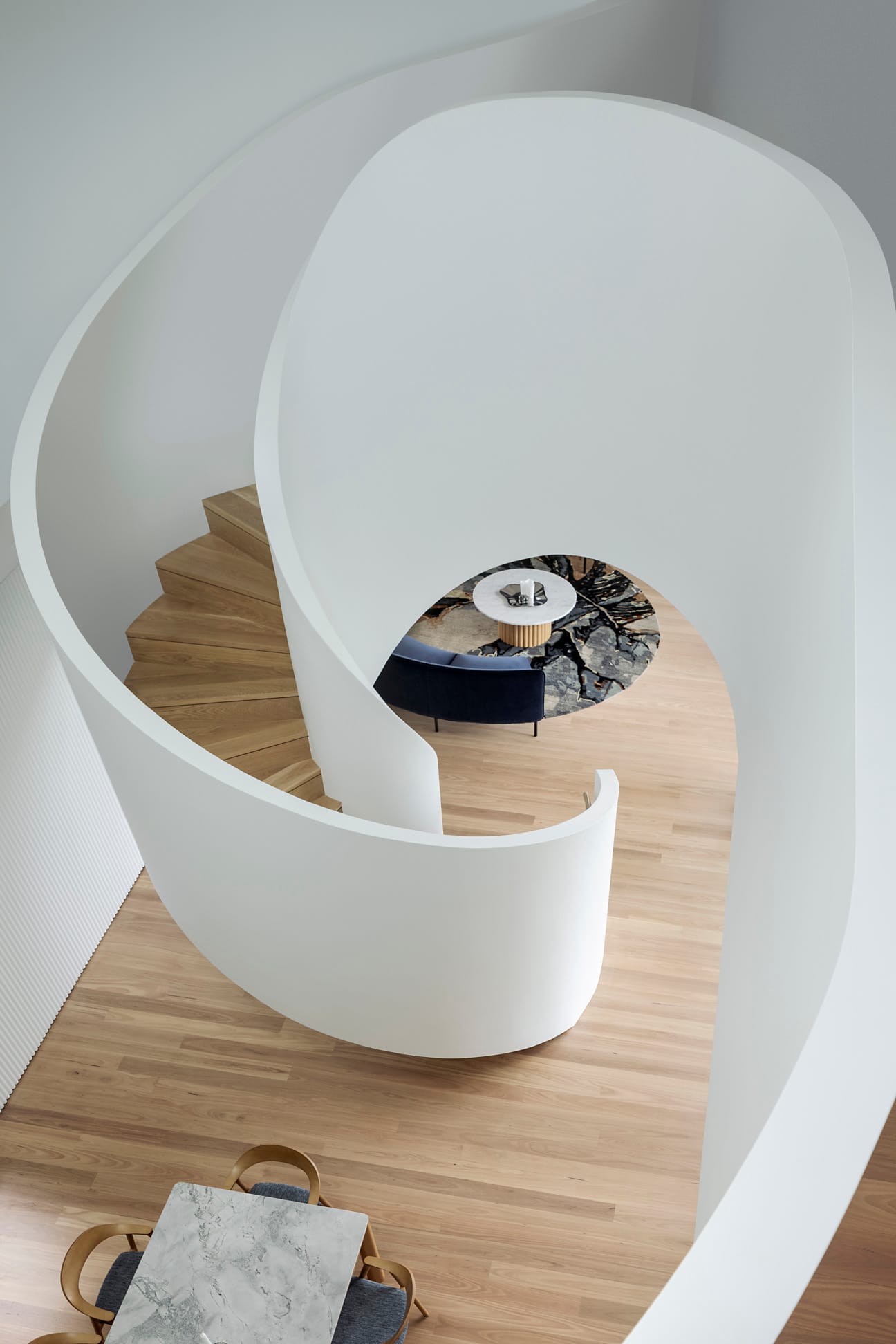

Gyprock Flexible is typically used to create curved feature walls and ceilings, and for the creative encasement of columns.

This plasterboard is installed in two layers for increased strength.
Gyprock Flexible
Product Data Sheet Safety Data Sheet Find a Supplier
Australian Made logo in black and white

Australian Made

Licensed by Australian Made Campaign Ltd
feature flexible icon with curved line

Design Freedom

Create visual interest

versatile icon with line shape

Versatile

Suitable for walls and ceilings

25 year warranty icon

25 Year Warranty

Specify and install with confidence

As seen on the Block 2020

The Block 2020 Featured Product

Technical Specifications

Product Options

Gyprock Flexible is available in the following sizes:

Thickness 6.5mm
Widths 1200mm
Lengths 3600mm
Edge Profiles Recessed Edge for regular jointing, Recessed Edge/Square Edge for low profile architectural mouldings

Stockholdings of specific sizes may vary in different regions. Click HERE for a list of stocked sizes in your state

For the latest product availability in your area and to place an order, contact your nearest supplier.

Product Manufacture

Gyprock Flexible is manufactured by CSR Gyprock in Australia to stringent product specifications.

Product Handling

Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.

Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.

Health and Safety

Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.



Manufacturing Tolerances

Nominal Thickness 6.5mm ± 0.5mm
Nominal Widths 1200 ± 3mm
Nominal Lengths 3600mm ± 5mm
Squareness Cut ends ± 3mm in the width of the board

Physical Properties

Nominal Board Weight* 4.3kg/m2
Thermal Resistance 0.03 m2K/W
Fire Hazard Properties∆ Group No = 1
SMOGRARC <100 m2/s2
Combustibility◊ Plasterboard may be used wherever a non-combustible material is required.
Total Recycled Content
 10.2%

* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).

Installation Instructions

Installation Guidance

Install to manufacturer's recommendations as outlined in the relevant Installation Guide.

Resources

Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.

Commercial Installation Guide

Design considerations and installation instructions.

Australian Made

Australian Made

Licensed by Australian Made Campaign Limited to use the Australian Made Logo.
Manufactured For Life red logo with the shape of Australia in the centre.

Manufactured for Life

Gyprock plasterboard products are manufactured for life with all CSR products designed to achieve optimal performance when part of a CSR integrated system.

GECA Accredited

Verified by an independent conformity assessment body to meet the environmental, health and social/ethical criteria of the GECA Panel Boards standard.
