Gyprock Plus™

Technical Specifications Installation Instructions

Standard plasterboard doesn’t get better than this – ideal for use on walls and ceilings in residential environments, Gyprock Plus features Optimised Core technology, making it stronger and lighter with significantly improved board handling.

Product Overview

Gyprock Plus is a premium, lightweight 10mm thick plasterboard with a thicker face paper that produces a crisper score and snap experience with cleaner cuts and squarer edges. Optimised Core technology also provides greater breaking strength in a substantially lighter board that continues to exceed the performance requirements of Australian Standard AS/NZS 2588.

Typical Applications

Gyprock Plus is typically used as a wall lining option in residential applications but can also be used on ceilings with standard 450mm joist centres. It is most suitable for areas of the home where exposure to moisture is not a concern such as bedrooms, living areas and entrance ways.

Recommendation

Gyprock Plus is best for ceilings with standard 450mm joist centres. In situations where the ceiling joists span 600mm centres, it is best to select Gyprock Supaceil.

Available Edge Profiles

Edge Profile

Recessed edge (RE) profile – both long edges of the board feature a recess that tapers approximately 60mm in from the edge. Recesses enable jointing, and are easily covered by standard size cornice and skirting. This is the standard choice of profile.

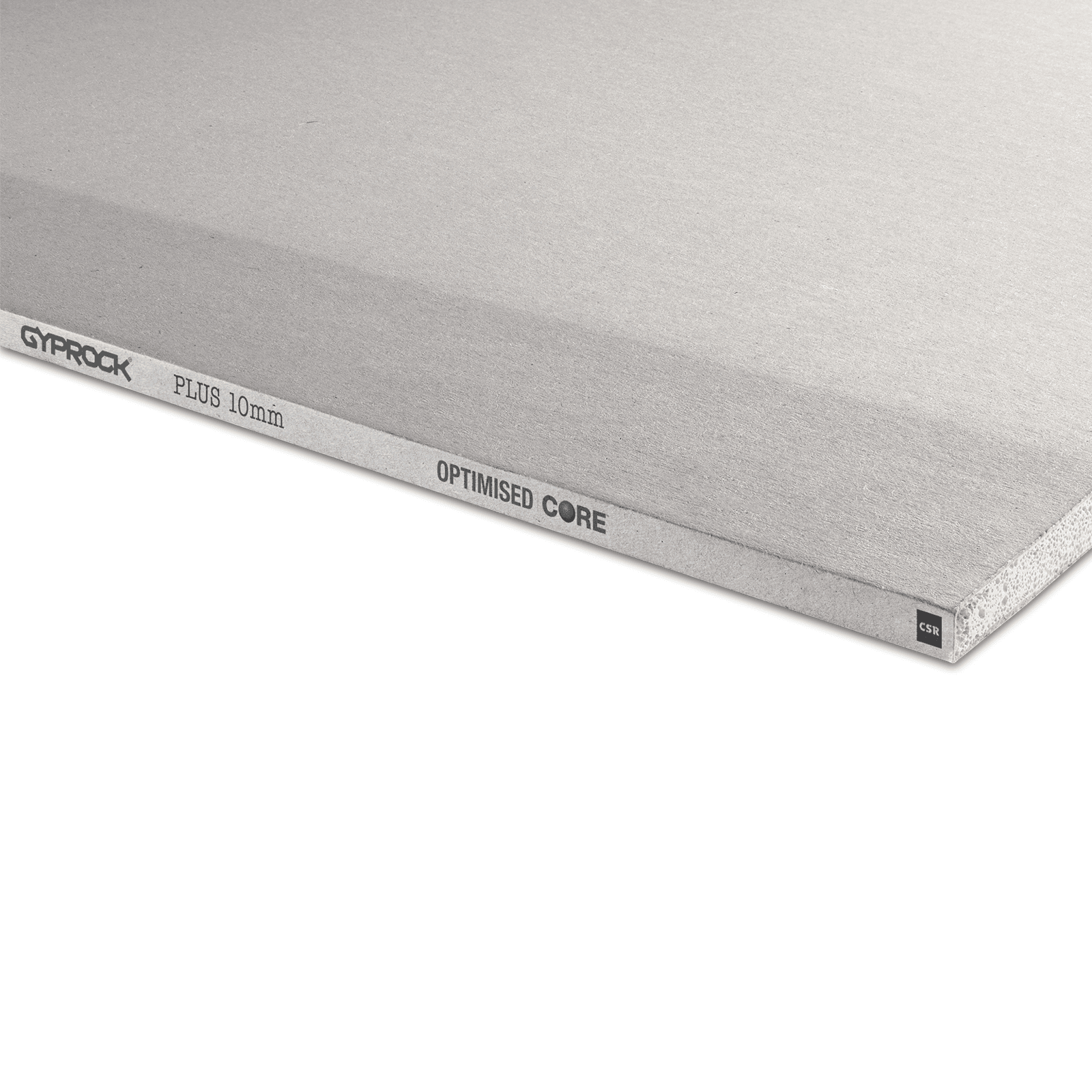

Gyprock Plus™ 10mm
Product Data Sheet Safety Data Sheet Find a Supplier

Standard plasterboard doesn’t get better than this – ideal for use on walls and ceilings in residential environments, Gyprock Plus features Optimised Core technology, making it stronger and lighter with significantly improved board handling.

Superior breaking strength icon with bicep flex

Stronger

Superior breaking strength

lighter icon with feather

Lighter

Easy to lift and flex for better sheet manoeuvrability

improved score icon with cutting blade

Improved Score and Snap

For crisp edges and cleaner cuts

Australian Made logo in black and white

Australian Made

Licensed by Australian Made Campaign Ltd

Optimised Core™ technology

Plasterboard manufactured with Optimised Core technology has an advanced performance-to-weight ratio, meaning greater breaking strength in a substantially lighter board.

  • Stronger - more robust with better breaking strength for improved handling and installed performance
  • Lighter - easier to lift for better sheet manoeuvrability and improved flex
  • Significantly improved score and snap - for crisp edges and cleaner cuts
Gyprock Plus Diagram

Technical Specifications

Product Options

Gyprock Plus is available in the following sizes:

Thickness 10mm
Widths 1200mm
1350mm
Lengths 2400mm
2700mm
3000mm
3600mm
4200mm
4800mm
5400mm
6000mm
Edge Profiles Recessed Edge for regular jointing, Recessed Edge/Square Edge for low profile architectural mouldings

Stockholdings of specific sizes may vary in different regions. Click HERE for a list of stocked sizes in your state

For the latest product availability in your area and to place an order, contact your nearest supplier.

Product Manufacture

Gyprock Plus is manufactured by CSR Gyprock in Australia to stringent product specifications.

Product Handling

Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.

Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.

Health and Safety

Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.

Manufacturing Tolerances

Nominal Thickness 10mm ± 0.5mm
Nominal Widths 1200 and 1350mm ± 3mm
Nominal Lengths From 2400 to 6000mm ± 5mm, typically in 300mm increments
Squareness Cut ends ± 3mm in the width of the board

Physical Properties

Nominal Board Weight* 5.7kg/m2
Thermal Resistance 0.04-0.05 m2K/W
Fire Hazard Properties∆ Group No = 1
SMOGRARC <100 m2/s2
Combustibility◊

Plasterboard may be used wherever a non-combustible material is required.
Total Recycled Content 7.0%

* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).

Installation Instructions

Installation Guidance

Install to manufacturer's recommendations as outlined in the relevant Installation Guide.

Resources

Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.

Residential Installation Guide

Design considerations and installation instructions.

Australian Made

Australian Made

Licensed by Australian Made Campaign Limited to use the Australian Made Logo.
Manufactured For Life red logo with the shape of Australia in the centre.

Manufactured for Life

Gyprock plasterboard products are manufactured for life with all CSR products designed to achieve optimal performance when part of a CSR integrated system.

GECA Accredited

Verified by an independent conformity assessment body to meet the environmental, health and social/ethical criteria of the GECA Panel Boards standard.
