Perforated Ceiling Tiles

Technical Specifications Installation Instructions

Gyprock Perforated Ceiling Tiles come in a white vinyl laminate finish, providing superior sound absorption for acoustic control in commercial grid ceilings.

Product Overview

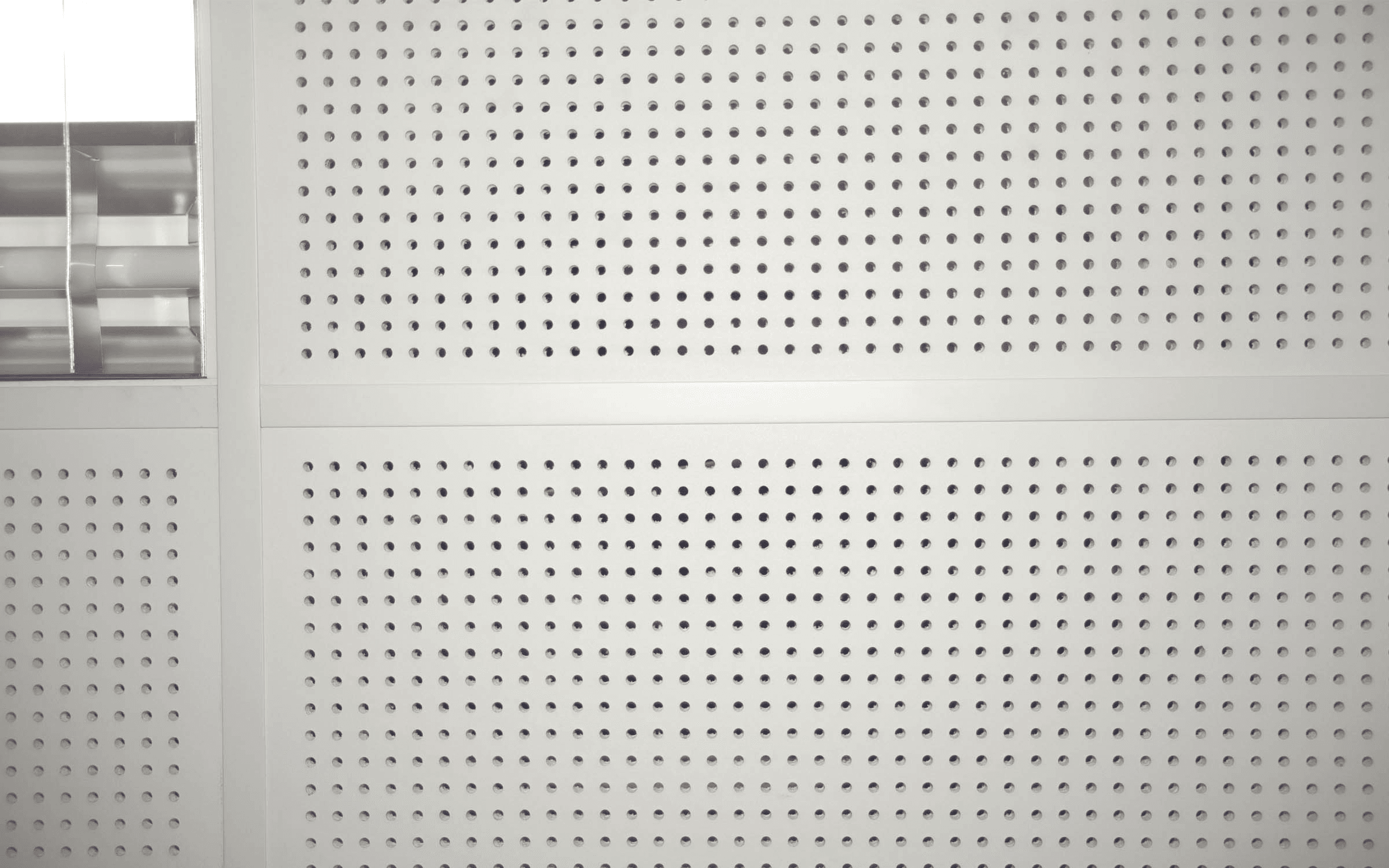

Perforated Ceiling Tiles are squared edged, 13mm thick and available as 1200mm x 600mm tiles to suit common exposed grid systems. The acoustic properties of the tiles are achieved by a regular grid of 6mm, full depth holes to approximately 10% of the panel area. This, combined with suitable insulation, provides a medium level of sound absorption to reduce echoes and reverberation. The edges of the tiles are cut square to suit exposed grid ceiling systems. The white vinyl facing is easy to clean.

Typical Applications

Perforated Ceiling Tiles are designed to suit standard suspended grid systems, typically in commercial construction. Suitable for a range of commercial environments where sound absorption is requires, Perforated Ceiling Tiles are often used in shopping centres, offices, restaurants, libraries and galleries.

Supatone™ and Freshtone™ Ceiling Tiles also available

Gyprock ceiling tiles are manufactured with various surface finishes and different performance properties to suit a variety of applications.

Supatone provides an economical grid ceiling tile option with a basic, white pre-finished surface.

Freshtone Tiles are lightly textured, premium quality plasterboard ceiling tiles that provide acoustic separation in commercial applications.


Gyprock® Perforated Ceiling Tiles
Product Data Sheet Safety Data Sheet Find a Supplier
Australian Made logo in black and white

Australian Made

Licensed by Australian Made Campaign Ltd
acoustic performance icon with sound

Acoustic

Perforated for enhanced acoustic absorption

easy to clean icon with cleaning spray

Easy to Clean

Vinyl facing for easy cleaning

drop in tile icon with four tiles

Ceiling Tile

Suitable for suspended grid systems

Technical Specifications

Product Options

Perforated Ceiling Tiles are available in the following size:

Thickness 13mm
Width 600mm
Length 1200mm

Stockholdings may vary. For product availability and to place an order, contact your nearest supplier.

Product Manufacture

Perforated Ceiling Tiles are manufactured for CSR Gyprock in Australia to stringent product specifications.

Product Handling

Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.

Storage: Protect from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.

Health and Safety

Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.





Physical Properties

Nominal Board Weight* 10kg/m2
Fire Hazard Properties∆
 Group No = 1
SMOGRARC <100 m2/s2
Combustibility◊ Plasterboard may be used wherever a non-combustible material is required.

* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).

Installation Instructions

Resources

Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.

Commercial Installation Guide

Design considerations and installation instructions.

Australian Made

Australian Made

Licensed by Australian Made Campaign Limited to use the Australian Made Logo.
Manufactured For Life red logo with the shape of Australia in the centre.

Manufactured for Life

Gyprock plasterboard products are manufactured for life with all CSR products designed to achieve optimal performance when part of a CSR integrated system.
