Gyprock HD

A versatile 10mm plasterboard featuring a high-density core and heavy-duty liner paper. Formulated to contain 10% recycled content.
Technical Specifications Installation Instructions

When heavy-duty calls, Gyprock HD has you covered. Featuring a high-density core and heavy-duty liner paper providing enhanced impact and acoustic performance, Gyprock HD is the perfect premium upgrade for residential walls and ceilings.

Product Overview

Gyprock HD is manufactured with a high-density core and a heavy-duty liner paper to provide enhanced acoustic properties and resistance to soft and hard body impact.

While Gyprock Plus provides everyday durability, HD is the perfect all round premium 10mm plasterboard that has enhanced resistance to dents, scuffs, and scrapes from things such as furniture and school bags and is up to 75% more impact resistant compared to Gyprock Plus 10mm.

Manufactured with a high-density core, HD also provides a reduction in sound transmission compared to walls lined with standard 10mm plasterboard, creating a more comfortable, quieter environment.

HD is a versatile product that is suitable for both walls and ceilings in residential applications and is formulated to contain 10% recycled content.

Typical Applications

Gyprock HD is ideal for use in residential walls and ceilings particularly in those areas subject to high traffic such as corridors, hallways, rumpus and games rooms, mud rooms and children’s bedrooms. When installed in ceilings of multi-storey homes, HD can also reduce noise levels between floors.

Gyprock HD is not suitable where it would be in contact with water or constant relative humidity above 90%.

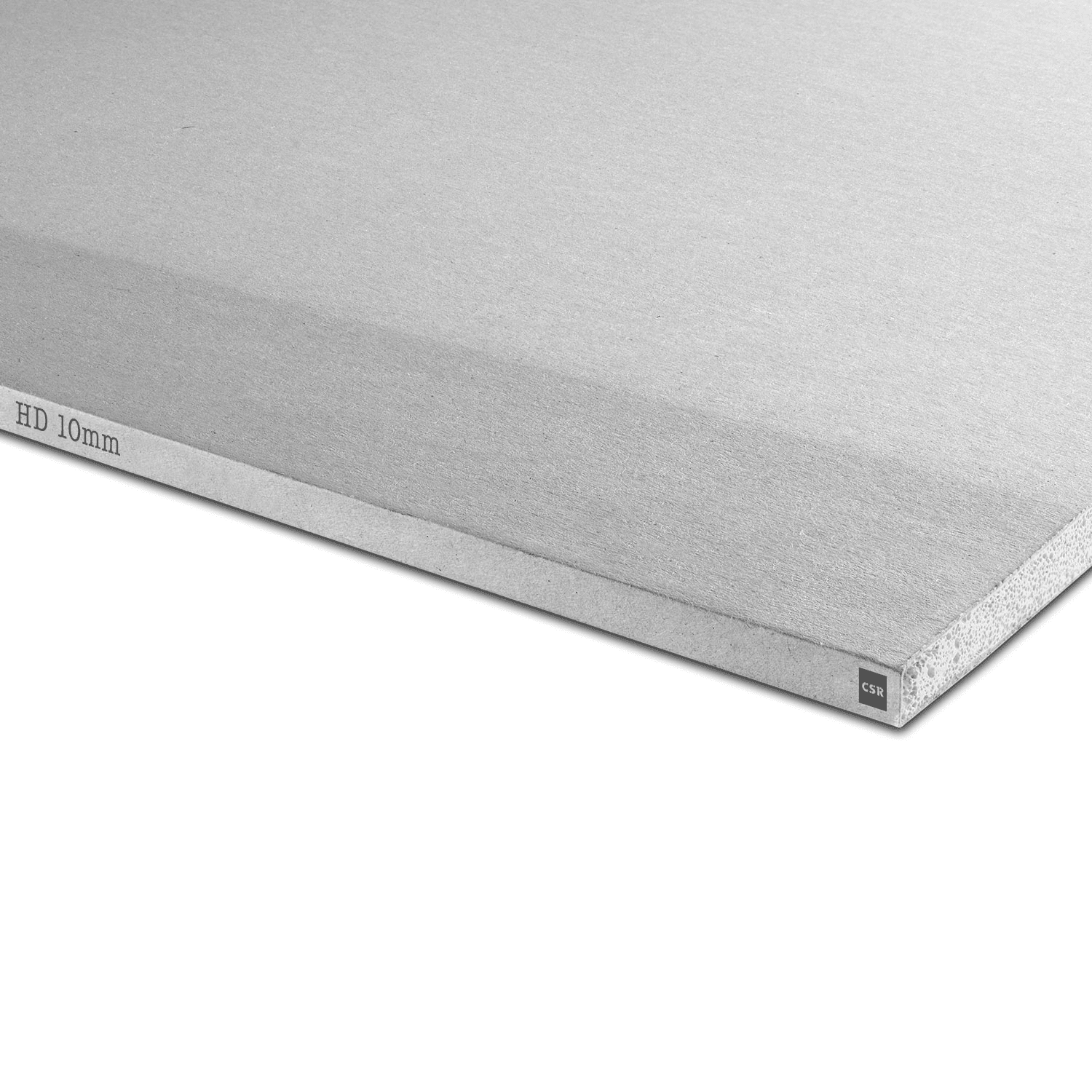

Product image of Gyprock HD plasterboard
Product Data Sheet Safety Data Sheet Find a Supplier
impact resistant icon with shield and tick

High Impact Resistance

High density core and heavy-duty liner paper provide up to 75% more impact resistance than Gyprock Plus 10mm.

acoustic performance icon with sound

Enhanced Acoustic Performance

Denser core provides reduced sound transmission between adjoining spaces.

versatile icon with line shape

Ultimate Versatility

Can be used for residential walls and ceilings as well as Gyprock Party Wall and other Gyprock systems.

environmentally responsible icon with leaves

Made with Recycled Materials

Developed and manufactured with 10% recycled content.

Australian Made and Owned

Australian Made and Owned

Licensed by Australian Made Campaign Ltd

Tested Impact Performance

Gyprock impact resistant plasterboard products are manufactured with a heavier lining paper, and special additives to enhance the durability of their core. When compared to Gyprock Plus 10mm, Gyprock HD provides up to 75% more impact resistance and is the perfect product for areas subject to high traffic.

Hard body impact

Hard body impact is assessed by dropping a 50mm steel ball onto the plasterboard surface from increasing heights.

Soft body impact

Soft body impact testing sees a weighted bag swung on a pendulum, striking the plasterboard surface.

Impact Resistance

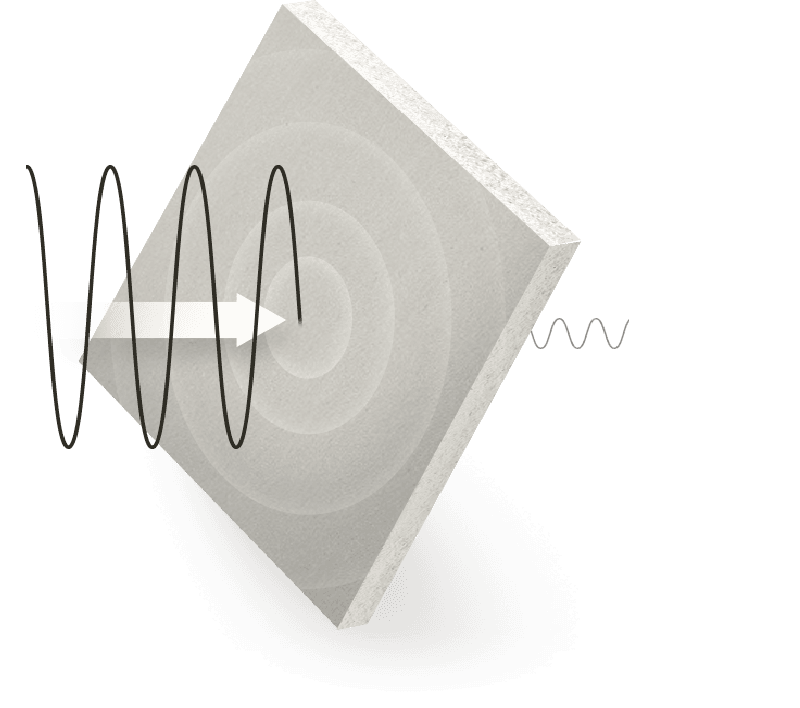

Superior Acoustic Performance

Gyprock acoustic plasterboard products fall into two categories – those for preventing sound transmission, and those designed to provide sound absorption. Sound transmission products are manufactured with a denser core, providing a physical barrier to prevent sound moving to adjoining spaces. Absorptive plasterboard products feature perforations to help reduce echo and improve acoustics within a room.

While the selection of an acoustic plasterboard lining alone will improve performance, CSR provides a range of wall and ceiling systems which deliver superior results for transmission or absorption, through a combination of plasterboard, insulation, fixing methods, plenums and framing configuration.

Acoustic Resistance

Technical Specifications

Product Options

Gyprock HD is available in the following sizes:

Thickness 10mm
Widths 1200mm
1350mm
Lengths 3600mm
4200mm
4800mm
Edge Profiles Recessed Edge for regular jointing,

Stockholdings of specific sizes may vary in different regions. Click HERE for a list of stocked sizes in your state.

For the latest product availability in your area and to place an order, contact your nearest supplier.

Product Manufacture

Gyprock HD is manufactured by CSR Gyprock in Australia to stringent product specifications.

Product Handling

Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.

Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.

Health and Safety

Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.



Manufacturing Tolerances

Nominal Thickness 10mm ± 0.4mm
Nominal Widths 1200mm and 1350mm ± 3mm
Nominal Lengths From 3600mm to 4800mm ± 5mm, typically in 600mm increments
Squareness Cut ends ± 3mm in the width of the board

Physical Properties

Nominal Board Weight* 8.5kg/m2
Thermal Performance:
R-Value		 0.04 – 0.05 m2K/W
Fire Hazard Properties∆ Group No = 1
SMOGRARC <100 m2/s2
Combustibility◊ Plasterboard may be used wherever a non-combustible material is required.
Total Recycled Content
 10%

*Subject to reasonable manufacturing variance.

◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a)

∆ In accordance with AS ISO 9705 and AS 5637.1

Installation Instructions

Resources

Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.

Residential Installation Guide

Design considerations and installation instructions.

Australian Made and Owned

Australian Made and Owned

Licensed by Australian Made Campaign Limited to use the Australian Made Logo.
Manufactured For Life red logo with the shape of Australia in the centre.

Manufactured for Life

Gyprock plasterboard products are manufactured for life with all CSR products designed to achieve optimal performance when part of a CSR integrated system.

GECA Accredited

Verified by an independent conformity assessment body to meet the environmental, health and social/ethical criteria of the GECA Panel Boards standard.
